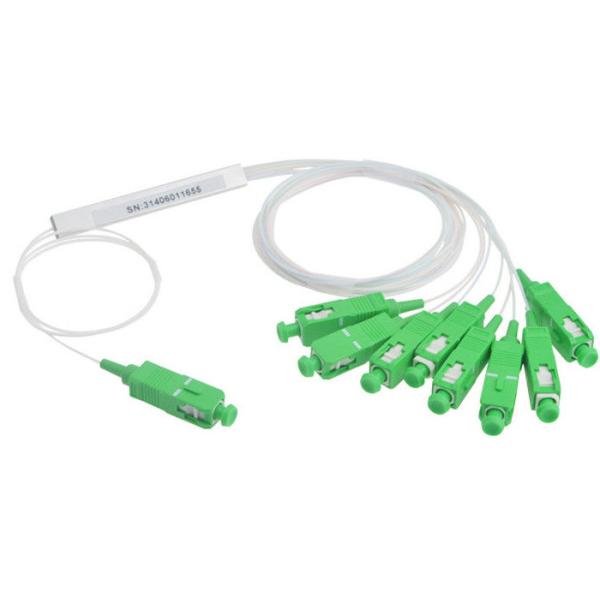

1X8 Blockless SC UPC/APC Planar Lightwave Circuit PLC Splitter with Equal Ratio Output for FTTH

Brand Name : FURONG
Model Number : SPLITTER1-8SC01
Certification : ROHS, ISO
Place of Origin : SHENZHEN
MOQ : 1
Price : negotiable
Supply Ability : 2000/day
Delivery Time : 1-8days
Packaging Details : plastic tray or box
Connector : SC, FC, ST, LC, SCAPC, LCAPC, FCAPC
CABLE DIAMETER : 0.9MM
PACKAGE : STEEL TUBE
CABLE LENGTH : CUSTOMIZED
SPLITTING : 1X8
WAVELENGTH : 1260-1650
Contact Now

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology and offers alow cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, superb reliability, and excellentchannel uniformity.


We provide 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter.


Features:

--0.9MM cable with customized length

--To be without or with connectors

--Adopt 100% new raw material, ROHS compliance

--Low Insertion loss

--Low PDL Compact Design

--Good channel-to-channel uniformity

--Stable performance and high reliablility

--Wide Operating Temperature: from -40℃ to 85℃


Specifications (1XN):

Port Configration1X21X41X81X161X321X64
Operating Wavelength (nm)1260 ~ 1650
Insertion Loss (dB)Typical3.56.810.213.116.220.2
Max4.07.410.513.516.921.0
Channel Uniformity (dB)0.50.71.01.41.82.0
PDL (dB)0.20.20.30.30.30.4
WDL (dB)0.30.30.30.50.50.8
TDL (-40ºC ~ 85ºC )(dB)0.50.50.50.80.81.0
Dimensions for Fan-out (mm)60(L)X7(W)X4(H)60X12X480(L)X20(W)X6(H)
RL (dB)> 55dB
Directivity (dB)> 55dB
Fiber TypeG652D
Operating Temperature Range-40ºC ~ 85ºC

Specifications (2XN):

Port Configration2X22X42X82X162X322X64
Operating Wavelength (nm)1260 ~ 1650
Insertion Loss (dB)Typical3.87.210.614.016.820.8
Max4.27.811.214.617.921.5
Channel Uniformity (dB)1.01.41.52.02.52.5
PDL (dB)0.20.20.40.40.40.5
WDL (dB)0.60.60.80.80.81.0
TDL (-40ºC ~ 85ºC )(dB)0.50.50.50.80.81.0
Dimensions for Fan-out (mm)60(L)X7(W)X4(H)80(L)X12(W)X4(H)80X20X6
RL (dB)> 50dB
Directivity (dB)> 55dB
Fiber TypeG652D
Operating Temperature Range-40ºC ~ 85ºC
